Selecting the right size and dimensions of Fiberglass Reinforced Plastic (FRP) grating depends on the specific application, environmental conditions, load requirements, and safety standards. Below is a structured guide to help you choose the appropriate FRP grating:
1. Key Factors for Selection
A. Load Requirements
Determine the static (long-term) and dynamic (short-term) loads the frp grating must support:

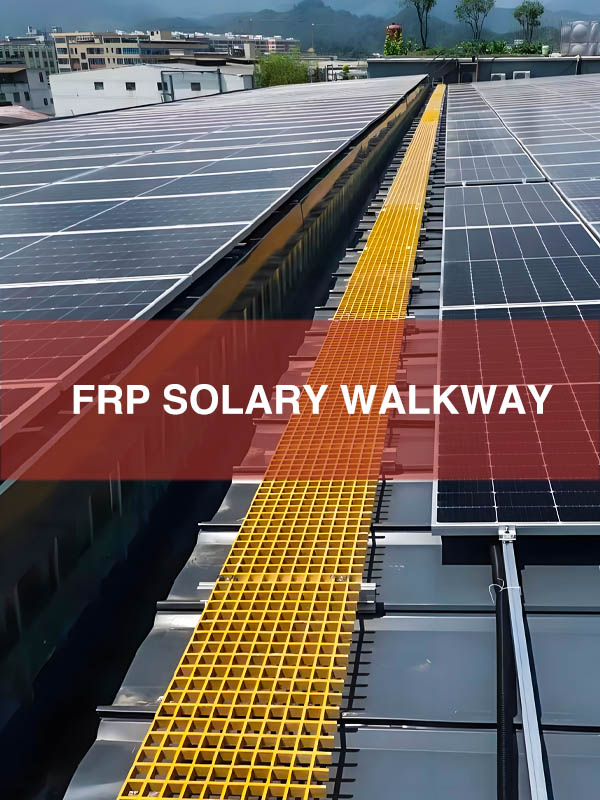

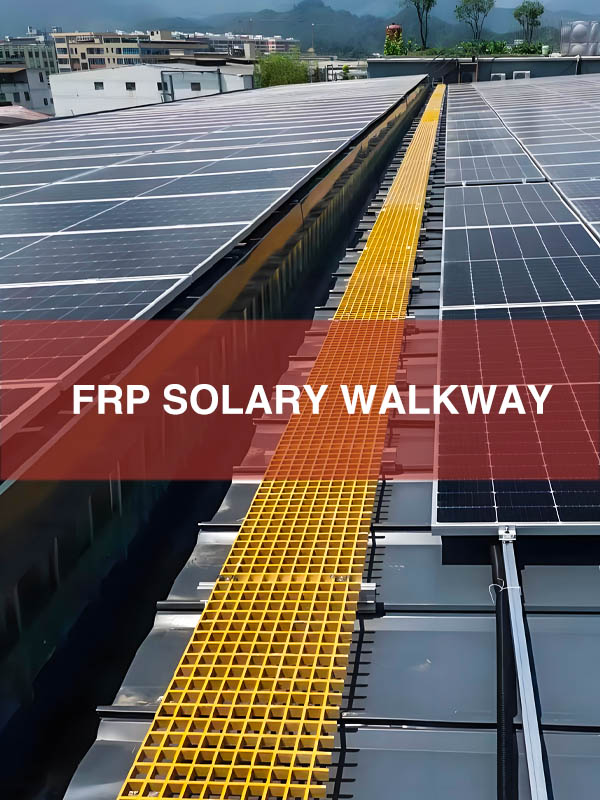

Light Duty (3–5 kN/m²): Walkways, stairs, platforms.

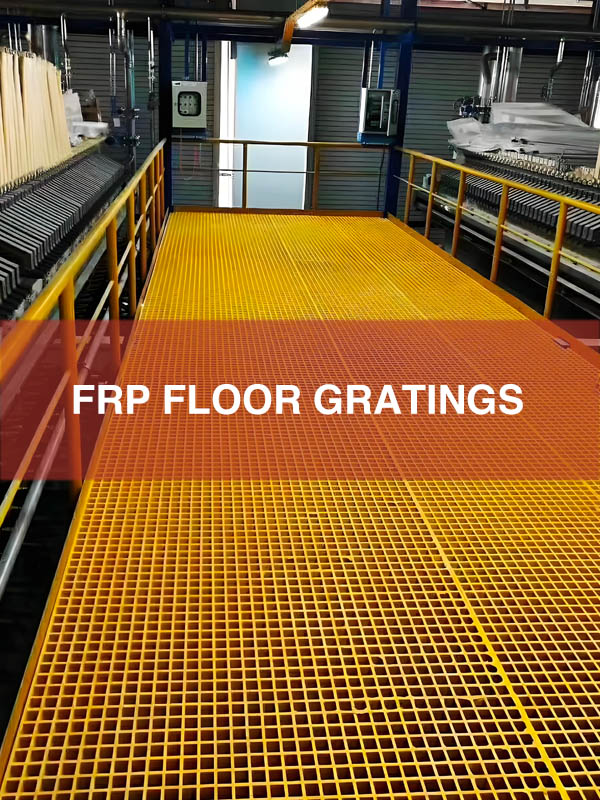

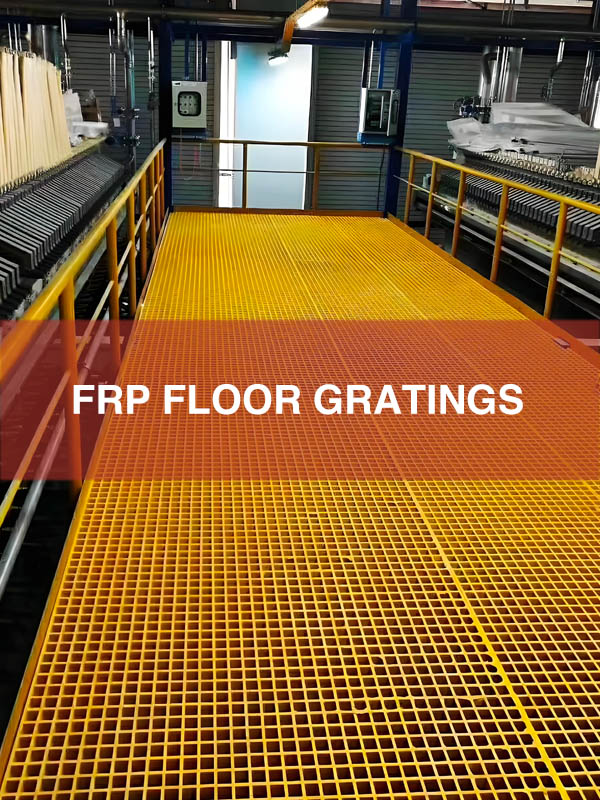

Medium Duty (5–10 kN/m²): Equipment platforms, industrial flooring.
Heavy Duty (10–20 kN/m²): Vehicle traffic, forklift areas.
Extra Heavy Duty (20+ kN/m²): Custom designs with thicker panels or additional supports.
B. Span (Support Spacing)
The distance between supports determines the required thickness of the grating:
Span ≤ 1 m: 25–30 mm thickness.
Span 1–1.5 m: 30–38 mm thickness.
Span 1.5–2 m: 38–50 mm thickness.
Span > 2 m: Use reinforced grating or add intermediate supports.
C. Mesh Size (Aperture)
Choose the grid aperture based on safety, debris drainage, and aesthetics:
Small Mesh (19×19 mm or 25×25 mm): High slip resistance for walkways, stairs.
Medium Mesh (38×38 mm): General-purpose use (platforms, ramps).
Large Mesh (50×50 mm): High drainage (trench covers, washdown areas).
D. Surface Type
Plain Surface: Standard for dry environments.
Gritted/Grooved Surface: Enhanced slip resistance (oil, water, or chemical exposure).
Solid Top Cover: Added corrosion resistance (e.g., for acidic environments).
E. Resin Type
Polyester Resin: Cost-effective for mild chemical resistance.
Vinyl Ester Resin: Superior corrosion resistance (strong acids, alkalis, high temperatures).
Fire-Retardant Resin: Required for fire-prone areas (oil/gas platforms, electrical rooms).
F. Environmental Conditions
Chemical Exposure: Use vinyl ester resin.
UV Exposure: Opt for UV-stabilized resin or dark-colored panels.
Temperature Extremes: Ensure resin can withstand operating temperatures (e.g., vinyl ester for up to 120°C).
2. Common Applications & Recommended Specifications
| Application | Recommended FRP Grating Specifications |
|---|---|

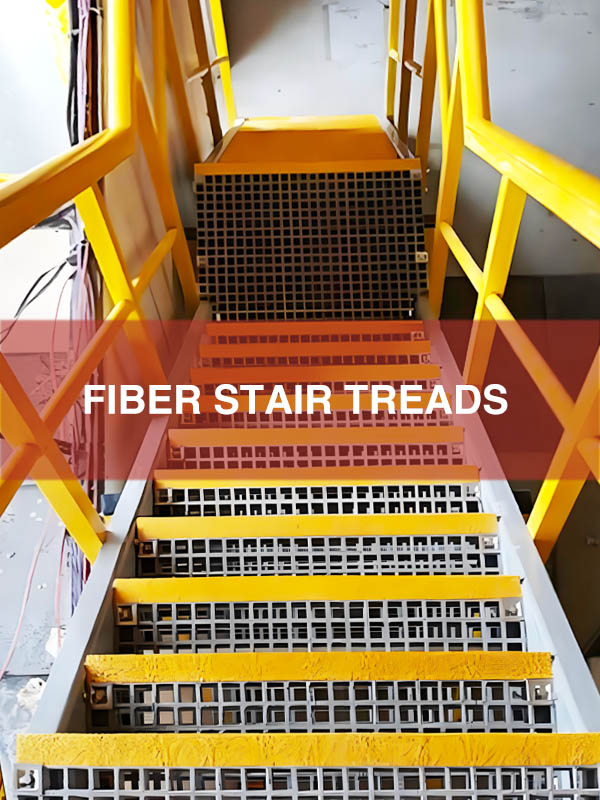

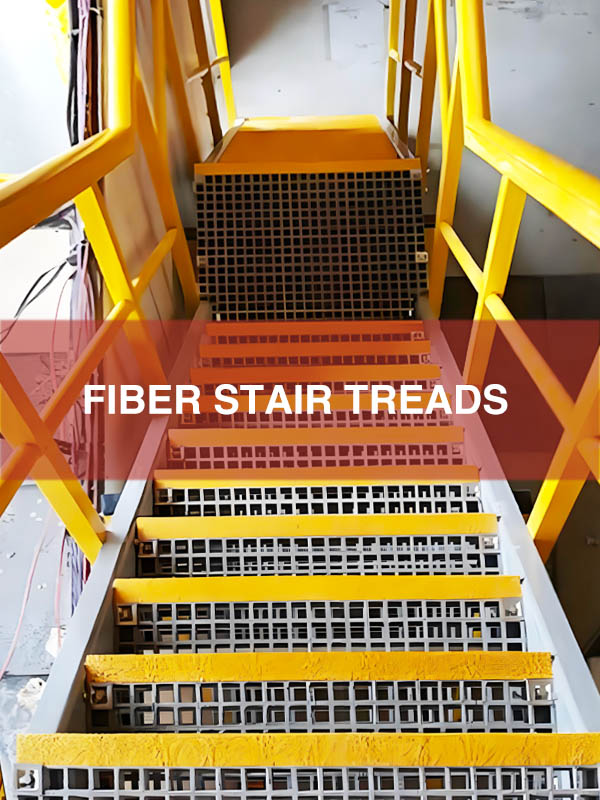

| Walkways/Stair Treads | 25–30 mm thick, 19×19 mm mesh, gritted surface, polyester resin. |

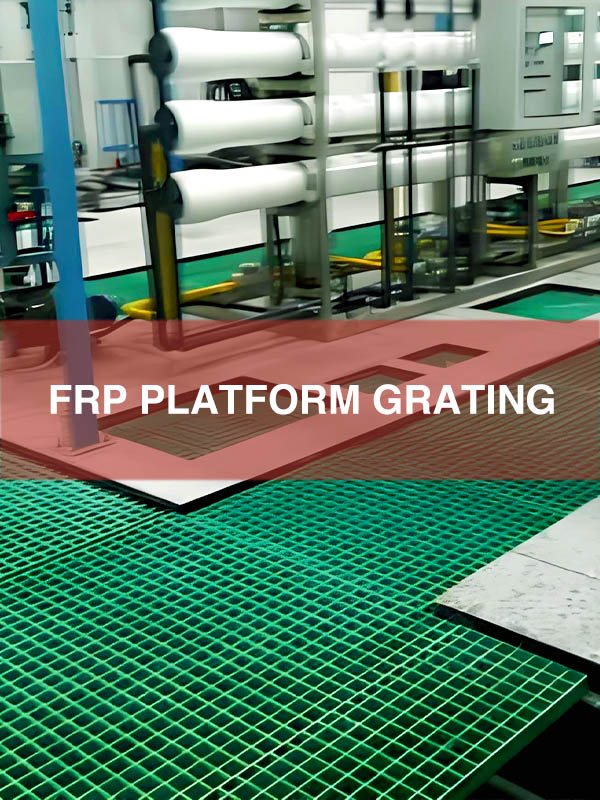

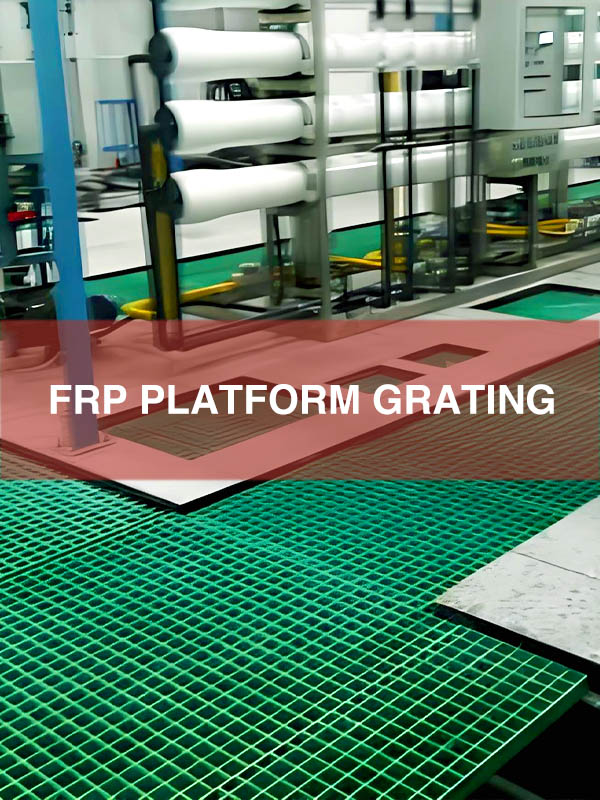

| Industrial Platforms | 38–50 mm thick, 38×38 mm mesh, gritted surface, vinyl ester resin (medium/heavy loads). |
| Trench Covers | 38–50 mm thick, 50×50 mm mesh, plain surface (maximize drainage). |
| Chemical Plants | 50 mm thick, 25×25 mm mesh, solid top cover, vinyl ester resin (acid/alkali resistance). |
| Marine/Offshore Platforms | 50 mm thick, 38×38 mm mesh, UV-stabilized vinyl ester resin, gritted surface (saltwater corrosion). |
| Food Processing Areas | 30–38 mm thick, 38×38 mm mesh, non-porous surface, FDA-compliant resin. |
| Fire Escape Routes | 38 mm thick, 25×25 mm mesh, fire-retardant resin. |
3. Step-by-Step Selection Process
Define the Application: Identify the purpose (e.g., walkway, trench cover, heavy-duty platform).
Calculate Loads: Include static loads (equipment weight) and dynamic loads (foot traffic, vehicles).
Determine Span: Measure the distance between supports (e.g., beams, joists).
Select Thickness: Use span tables from suppliers to match load and span requirements.
Choose Mesh Size: Prioritize safety (small mesh) or drainage (large mesh).
Specify Surface & Resin: Match environmental conditions (e.g., gritted surface for wet areas).
Validate with Standards: Ensure compliance with industry standards (e.g., ASTM, ISO).
4. Pro Tips
Cost Optimization: Use standard mesh sizes (38×38 mm) for general use to reduce costs.
Custom Designs: For unique loads or spans, consult manufacturers for reinforced panels or hybrid structures.
Installation: Use corrosion-resistant fasteners (stainless steel or FRP clips) and allow for thermal expansion gaps.
Maintenance: Clean regularly with water or mild detergents; avoid abrasive tools to preserve surface integrity.
5. Example Calculation
Scenario: A factory walkway with a span of 1.2 m needs to support foot traffic and occasional equipment (5 kN/m² load).
Thickness: 38 mm (supports 1.2 m span).
Mesh: 25×25 mm (slip-resistant).
Resin: Vinyl ester (chemical spills in the area).
Surface: Gritted finish.
By systematically evaluating these factors, you can select FRP grating that balances safety, durability, and cost-effectiveness for your specific application. Always consult technical datasheets and suppliers for load-span tables and certifications.
