FRP Moulded Mini Mesh Grating
FRP Moulded Mini Mesh Grating is a specially designed structural component used in industrial and architectural applications. These gratings are known for their high strength-to-weight ratio, corrosion resistance, and durability, making them ideal for environments such as factories, chemical plants, and offshore platforms.

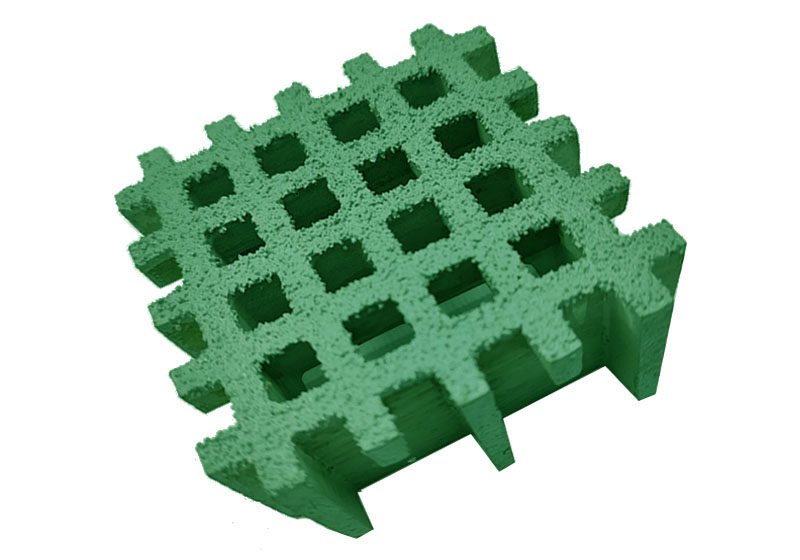

FRP Mini Mesh Grating Grit Surface
Concave surface FRP grating is a specialized, custom-molded product used when afe walking surface needs to conform to a curved structure.

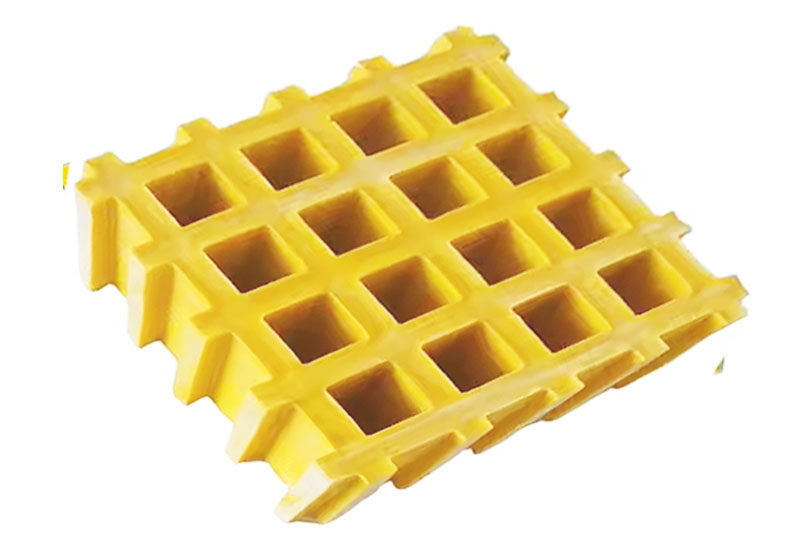

FRP Moulded Mini Mesh Grating 19x19mm
Concave surface can enhance walking safety by increasing surface friction, especially in damp or greasy environments.
GRP Mini Mesh Grating Concave Surface
Grooved concave surface FRP grating is one type of FRP grating classified by surface type. It has general anti-slip performance and is suitable for various occasions.

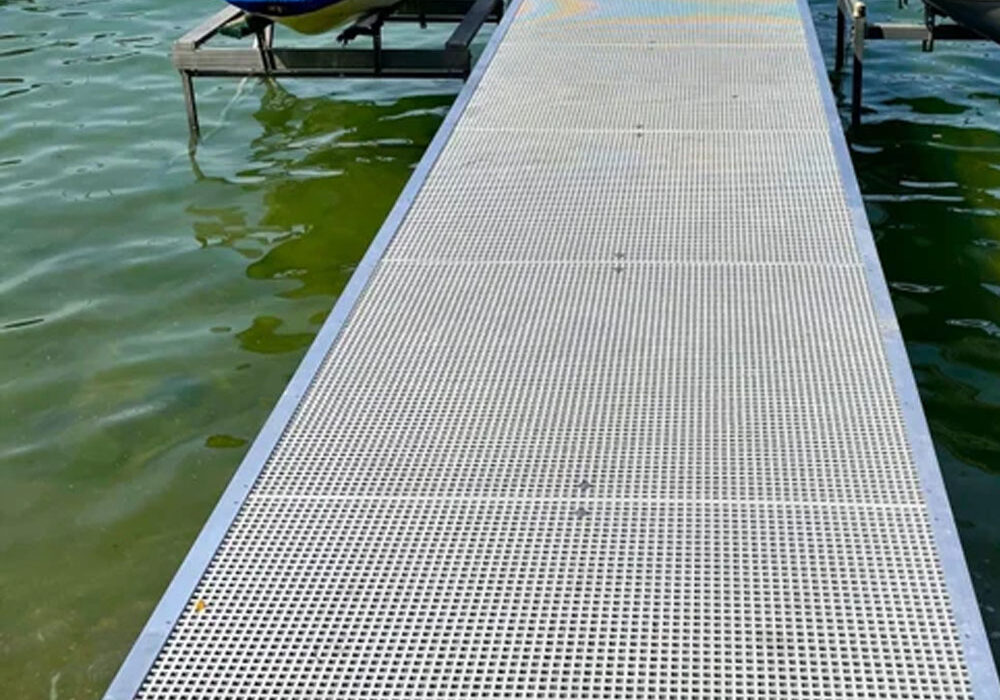

FRP Grating Mini Mesh Use as Walkways
FRP Mini Mesh Grating features a much smaller opening size compared to standard FRP molded grating, small open size can prevents nuts, bolts, small tools, jewelry, food products, pills, etc., from falling through.It is usually has a gritted top surface for excellent slip resistance, even when wet or oily. It's the go-to choice for safety-critical, corrosive, or hygienic environments where preventing small items from falling through the grating is essential.
FRP Moulded Mini Mesh Floor Grating
FRP Moulded Mini Mesh Floor Grating are commonly used in industrial environments such as chemical plants, wastewater treatment facilities, and offshore platforms due to their resistance to corrosion and non-conductive properties. FRP Mini Mesh Grating combines the inherent benefits of FRP (corrosion resistance, lightweight, non-conductive) with the specific advantages of a very fine mesh pattern (superior small object containment, enhanced toe safety, excellent slip resistance).
SPECIFICATIONS
FRP micro mesh gratings
Mini-Mesh FRP Grating also known as Micro-Mesh Grating, It have holes smaller than standard mesh grating panels and these holes stop small objects passing through the grating – which is particularly useful if you’re using it as part of a raised walkway or riser void covering. Micro-mesh is fabric that is made of small holes and made with 100% polyester. The small holes improve airflow and create a lightweight option that helps you move better every day. Mesh fabric is made from polyester, which is perfect for any kind of workout in any type of weather.
It has a 12mm x 12mm or 19cmx19cm open mesh area. The smaller opening prevents objects as small as 13mm from falling through and complies with the European 15mm ball falling test requirement. The smaller holes also offer smooth movement for small wheeled trolleys, prams, wheelchairs etc.
GRP Mini Mesh Grating is a versatile, reliable, high quality flooring and a credible alternative to steel mesh grating. With proven reliability in high traffic areas giving excellent slip resistancy it works equally well in all sorts of aggressive and corrosive environments and at extremes of temperature.
Length and width:
Common lengths range from 1 meter to 4 meters.
Widths are mostly concentrated between 1 meter and 1.22 meters.
Thickness:
Depending on the load-bearing requirements and design requirements, the thickness can range from a few millimeters to dozens of millimeters. Common thicknesses are 30mm, 38mm, etc.
Normal FRP Grating Panel Size:
1.22*2.44 meters
1.22*3.66 meters
1*4.04 meters
1x2 meters
Normal FRP Grating Mesh size:
12*12 mm
19*19 mm
Please note that these sizes can be customized according to customer needs, so if you need a specific size or special requirements of FRP grating, it is recommended to contact us for detailed information.
Leading FRP/GRP GRATINGS and FRP PROFILES Product company from CHINA
SLIP RESISTANCE PERFORMANCE
Wet/Dry Conditions: Achieves >0.65 coefficient of friction (COF) under ASTM E303 (pendulum test), exceeding OSHA’s 0.5 requirement for walkways.
Oily/Chemical Exposure: Resists degradation better than rubber or epoxy coatings.
Grit Surface: Coarse mineral aggregates (typically aluminum oxide or silica) are bonded into the resin during molding, creating a permanent anti-skid layer.
Concave Advantage: The curved surface naturally directs liquids toward drainage points, reducing pooling and enhancing grip.
FRP GRATING VS. STEEL GRATING
| Item | GRP Grating | Steel Grating |
|---|---|---|
| Corrosion Resistance | ✅ Excellent | ❌/✅ Depends on type |
| Load Capacity | ❌ Moderate | ✅ High |
| Weight | ✅ Light | ❌ Heavy |
| Electrical Insulation | ✅ Yes | ❌ No |
| Fire Resistance | ❌ Limited | ✅ Good |
| Maintenance | ✅ Low | ❌ High |
| Cost (Long-term) | ✅ Lower | ❌ Higher (for carbon steel) |
Installation & Maintenance Warnings
▇ Drainage Alignment: Install concave panels with ≥1° slope toward drains to prevent liquid accumulation.
▇ Cleaning Protocol: Avoid high-pressure washing directly on grit surfaces (risk of dislodging aggregate).
▇ UV Stability: Select UV-inhibited resins if used outdoors to prevent surface resin erosion.
FRP Moulded Mini Mesh Grating INCLUDES:
✅ FRP Mini Mesh
✅ GRP Mini Mesh Grating
✅ Mini Mesh Moulded Grating
✅ Micro Mesh Grating
✅ FRP Micro Mesh Grating
Mini Mesh GRP Grating Panels
GRP Mini Mesh Grating
Micro-Mesh Fiberglass Grating
Anti-Slip Fibreglass Mini Mesh Grating
FRP Mini Mesh Grating Manufacturers
Video Show of FRP Mini Mesh Gratings
FRP Mini Mesh Grating combines the inherent benefits of FRP (corrosion resistance, lightweight, strength, non-conductive) with the critical added advantages of a fine mesh pattern: unmatched safety (slip and toe protection) and effective containment of small objects. This makes it the premier choice for safety-critical, corrosive, or hygienic environments where preventing slips, trips, falls, and dropped items is paramount.
FRP Grating Concave Surface
You are welcome to contact us for FRP grating with concave surface product and price issues, we will do our best to provide you with perfect services.
